Pressure pipe PN16 SDR 11 - SDR 13,6

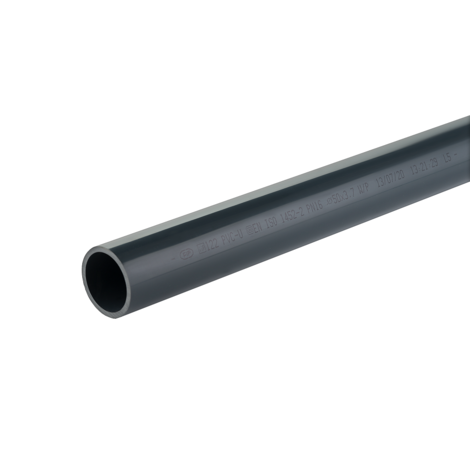

PVC-U pressure pipe according to standards EN ISO 15493 and DIN 8061/8062, dark gray RAL 7011, standard length 5m.
Pipes under pressure with cold chemical weld jointing systems (solvent welding) using suitable solvent cement WELD-ON and primer-cleaner.

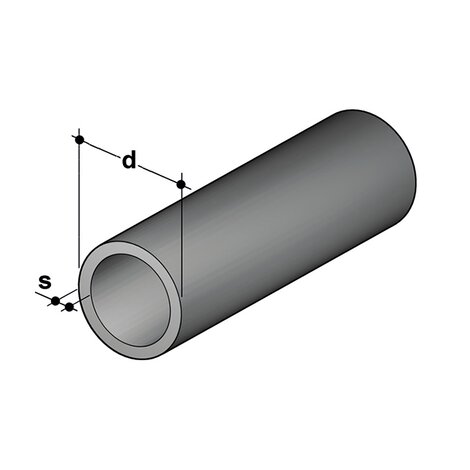

| Reference | tooltipImage | system | Category | family | d | S mm | Kg/m |
|---|---|---|---|---|---|---|---|
| PIPEV11016 | - | PVC-U system | Pipes | PVC-U Pipe DIN-8061/8062 | 16 | 1,5 | 0,109 |
| PIPEV13020 | - | PVC-U system | Pipes | PVC-U Pipe DIN-8061/8062 | 20 | 1,5 | 0,140 |
| PIPEV13025 | - | PVC-U system | Pipes | PVC-U Pipe DIN-8061/8062 | 25 | 1,9 | 0,216 |
| PIPEV13032 | - | PVC-U system | Pipes | PVC-U Pipe DIN-8061/8062 | 32 | 2,4 | 0,351 |
| PIPEV13040 | - | PVC-U system | Pipes | PVC-U Pipe DIN-8061/8062 | 40 | 3,0 | 0,539 |
| PIPEV13050 | - | PVC-U system | Pipes | PVC-U Pipe DIN-8061/8062 | 50 | 3,7 | 0,831 |
| PIPEV13063 | - | PVC-U system | Pipes | PVC-U Pipe DIN-8061/8062 | 63 | 4,7 | 1,323 |
| PIPEV13075 | - | PVC-U system | Pipes | PVC-U Pipe DIN-8061/8062 | 75 | 5,6 | 1,877 |
| PIPEV13090 | - | PVC-U system | Pipes | PVC-U Pipe DIN-8061/8062 | 90 | 6,7 | 2,681 |
| PIPEV13110 | - | PVC-U system | Pipes | PVC-U Pipe DIN-8061/8062 | 110 | 8,1 | 3,940 |
| PIPEV13125 | - | PVC-U system | Pipes | PVC-U Pipe DIN-8061/8062 | 125 | 9,2 | 5,070 |
| PIPEV13140 | - | PVC-U system | Pipes | PVC-U Pipe DIN-8061/8062 | 140 | 10,3 | 6,563 |
| PIPEV13160 | - | PVC-U system | Pipes | PVC-U Pipe DIN-8061/8062 | 160 | 11,8 | 8,563 |
