QBXM - Stub flange exit side for clapet wafer check valves SDR 11 - S5
Stub flange short spigot for butt welding, exit side for clapet wafer check valves
Series of fittings designed for conveying fluids under pressure with a weld connection system (butt welding).

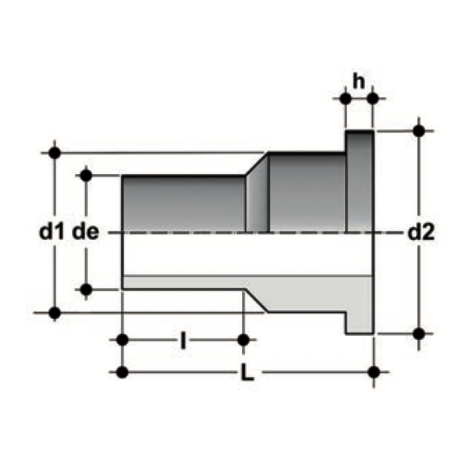

| Reference | Other description | system | Category | family | division | subfamily | de | DN | h | l | d1 | d2 | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QBXM11280 | *resale products | PP-H system | Pressure Fittings | Sistema PP-H testa/butt welding | Sistema PP-H testa/butt welding | Accesorios PP-H | *280 | 250 | 35 | 40 | 292 | 328 | 200 |
| QBXM11050 | *resale products | PP-H system | Pressure Fittings | Sistema PP-H testa/butt welding | Sistema PP-H testa/butt welding | Accesorios PP-H | *50 | 40 | 12 | 20 | 61 | 90 | 50 |
| QBXM11063 | *resale products | PP-H system | Pressure Fittings | Sistema PP-H testa/butt welding | Sistema PP-H testa/butt welding | Accesorios PP-H | *63 | 50 | 14 | 20 | 77 | 105 | 60 |
| QBXM11075 | *resale products | PP-H system | Pressure Fittings | Sistema PP-H testa/butt welding | Sistema PP-H testa/butt welding | Accesorios PP-H | *75 | 65 | 16 | 20 | 91 | 125 | 75 |
| QBXM11090 | *resale products | PP-H system | Pressure Fittings | Sistema PP-H testa/butt welding | Sistema PP-H testa/butt welding | Accesorios PP-H | *90 | 80 | 17 | 35 | 107 | 138 | 100 |
| QBXM11110 | *resale products | PP-H system | Pressure Fittings | Sistema PP-H testa/butt welding | Sistema PP-H testa/butt welding | Accesorios PP-H | *110 | 100 | 18 | 35 | 132 | 160 | 108 |
| QBXM11125 | *resale products | PP-H system | Pressure Fittings | Sistema PP-H testa/butt welding | Sistema PP-H testa/butt welding | Accesorios PP-H | *125 | 125 | 25 | 35 | 132 | 160 | 100 |
| QBXM11140 | *resale products | PP-H system | Pressure Fittings | Sistema PP-H testa/butt welding | Sistema PP-H testa/butt welding | Accesorios PP-H | *140 | 125 | 25 | 35 | 157 | 190 | 120 |
| QBXM11160 | *resale products | PP-H system | Pressure Fittings | Sistema PP-H testa/butt welding | Sistema PP-H testa/butt welding | Accesorios PP-H | *160 | 150 | 25 | 35 | 186 | 216 | 125 |
| QBXM11180 | *resale products | PP-H system | Pressure Fittings | Sistema PP-H testa/butt welding | Sistema PP-H testa/butt welding | Accesorios PP-H | *180 | 150 | 30 | 40 | 186 | 216 | 120 |
| QBXM11200 | *resale products | PP-H system | Pressure Fittings | Sistema PP-H testa/butt welding | Sistema PP-H testa/butt welding | Accesorios PP-H | *200 | 200 | 32 | 40 | 236 | 272 | 190 |
| QBXM11225 | *resale products | PP-H system | Pressure Fittings | Sistema PP-H testa/butt welding | Sistema PP-H testa/butt welding | Accesorios PP-H | *225 | 200 | 32 | 40 | 236 | 272 | 180 |
| QBXM11250 | *resale products | PP-H system | Pressure Fittings | Sistema PP-H testa/butt welding | Sistema PP-H testa/butt welding | Accesorios PP-H | *250 | 200 | 35 | 40 | 292 | 328 | 210 |
*resale products
