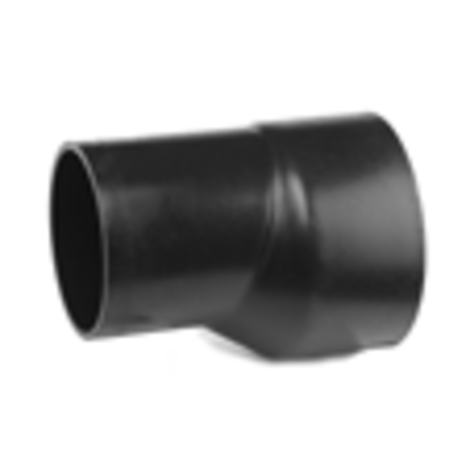

Reducer eccentric long

Name :	Reducer eccentric long
Subcategory :	Reducers

Go back Data sheet

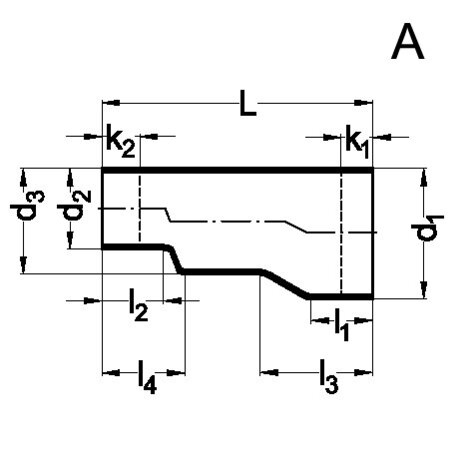

Reference	Name	tooltipImage	d1	d2	Kg	Type	L	l1	l2	l3	l4	d3	k1	k2
14 20 11	Reducer eccentric long	-	200	110	1,004	A	335	95	36	165	55	160	75	20
14 20 12	Reducer eccentric long	-	200	125	1,112	A	335	95	36	165	55	160	75	20
14 20 16	Reducer eccentric long	-	200	160	0,904	B	260	95	95	-	-	-	75	75
14 25 20	Reducer eccentric long	-	250	200	1,417	B	290	105	95	-	-	-	85	75
14 31 20	Reducer eccentric long	-	315	200	3,300	A	580	115	95	235	190	250	95	75
14 31 25	Reducer eccentric long	-	315	250	2,717	B	340	115	105	-	-	-	75	85
