Reduction with Flange PN16
Reduced Toulip PVC-U, M/F, Grey RAL 7011, FORSHEDA 601 POWER-LOCK® connection.
The fittings comply with UNI EN ISO 1452, DIN 8063, ISO 2045, ISO/DIS 6455 standards for the transport of pressurised fluids for the supply of drinking water, wastewater and food fluids: oil, wine, milk.

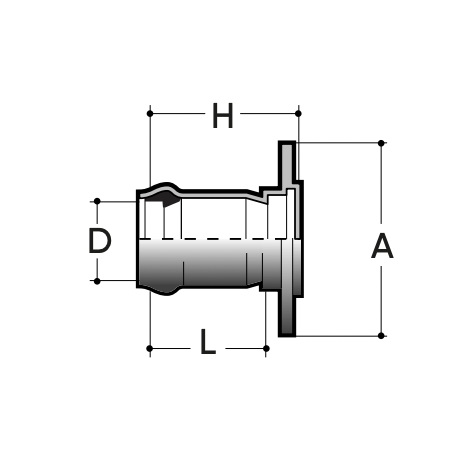

| Reference | system | Category | family | series | D x dn (mm) | Ø H x n. holes (mm) | L (mm) | H (mm) | Weight (gr) |
|---|---|---|---|---|---|---|---|---|---|
| TRVP16075050FBL | PVC-U system | Pressure Fittings | Prefab fittings | Reducers | 75x50 | 125x4 | 120 | 350 | 893 |
| TRVP16090050FBL | PVC-U system | Pressure Fittings | Prefab fittings | Reducers | 90x50 | 125x4 | 120 | 365 | 1333 |
| TRVP16090065FBL | PVC-U system | Pressure Fittings | Prefab fittings | Reducers | 90x65 | 145x4 | 120 | 365 | 1333 |
| TRVP16110050FBL | PVC-U system | Pressure Fittings | Prefab fittings | Reducers | 110x50 | 125x4 | 130 | 390 | 1533 |
| TRVP16110065FBL | PVC-U system | Pressure Fittings | Prefab fittings | Reducers | 110x65 | 145x4 | 130 | 390 | 1533 |
| TRVP16110080FBL | PVC-U system | Pressure Fittings | Prefab fittings | Reducers | 110x80 | 160x8 | 130 | 390 | 1533 |
| TRVP16125050FBL | PVC-U system | Pressure Fittings | Prefab fittings | Reducers | 125x50 | 125x4 | 140 | 420 | 2257 |
| TRVP16125065FBL | PVC-U system | Pressure Fittings | Prefab fittings | Reducers | 125x65 | 145x4 | 140 | 420 | 2257 |
| TRVP16125080FBL | PVC-U system | Pressure Fittings | Prefab fittings | Reducers | 125x80 | 160x8 | 140 | 420 | 2257 |
| TRVP16125100FBL | PVC-U system | Pressure Fittings | Prefab fittings | Reducers | 125x100 | 180x8 | 140 | 420 | 2257 |
| TRVP16140050FBL | PVC-U system | Pressure Fittings | Prefab fittings | Reducers | 140x50 | 125x4 | 160 | 460 | 3013 |
| TRVP16140065FBL | PVC-U system | Pressure Fittings | Prefab fittings | Reducers | 140x65 | 145x4 | 160 | 460 | 3013 |
| TRVP16140080FBL | PVC-U system | Pressure Fittings | Prefab fittings | Reducers | 140x80 | 160x8 | 160 | 460 | 3013 |
| TRVP16140100FBL | PVC-U system | Pressure Fittings | Prefab fittings | Reducers | 140x100 | 180x8 | 160 | 460 | 3013 |
| TRVP16160080FBL | PVC-U system | Pressure Fittings | Prefab fittings | Reducers | 160x80 | 160x8 | 160 | 500 | 4114 |
| TRVP16160100FBL | PVC-U system | Pressure Fittings | Prefab fittings | Reducers | 160x100 | 180x8 | 160 | 500 | 4114 |
| TRVP16160125FBL | PVC-U system | Pressure Fittings | Prefab fittings | Reducers | 160x125 | 210x8 | 160 | 500 | 4114 |
