RFV
Threaded fittings - reducers.

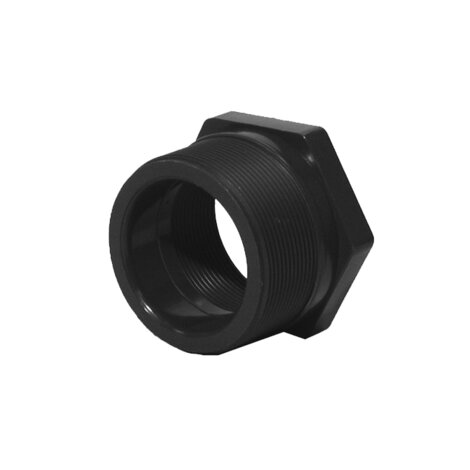

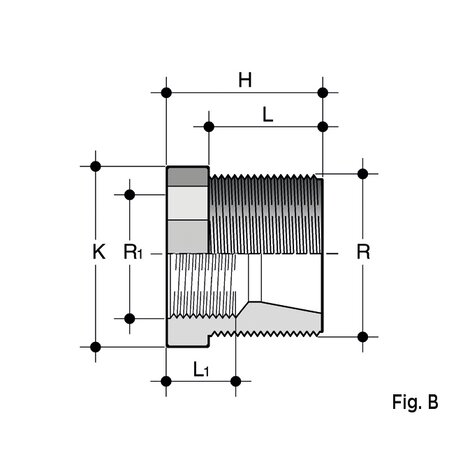

Reducer with BSP threaded male end (R) and BSP threaded female end (R1 reduced) (fig. B).
Series of fittings for pipes conveying fluids under pressure with threaded joints.
| Reference | tooltipImage | system | Category | family | R x R[5:1] | PN | E | H | K | L | L[5:1] | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RFV212200 | - | PVC-U system | Pressure Fittings | BSP Fittings | 2"1/2 x 2" | 16 | - | 56 | 80 | 30,2 | 25,7 | 155 |
| RFV300200 | - | PVC-U system | Pressure Fittings | BSP Fittings | 3" x 2" | 16 | - | 66 | 93 | 33,3 | 25,7 | 185 |
| RFV300212 | - | PVC-U system | Pressure Fittings | BSP Fittings | 3" x 2"1/2 | 16 | - | 66 | 93 | 33,3 | 30,2 | 200 |
| RFV400300 | - | PVC-U system | Pressure Fittings | BSP Fittings | 4" x 3" | 16 | - | 79 | 118 | 39,3 | 33,3 | 500 |
