RIV

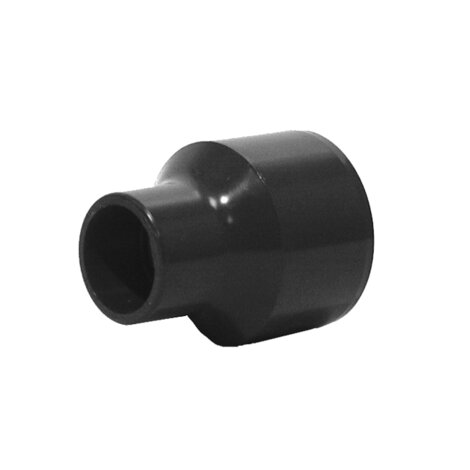

Solvent weld fittings - reducers.

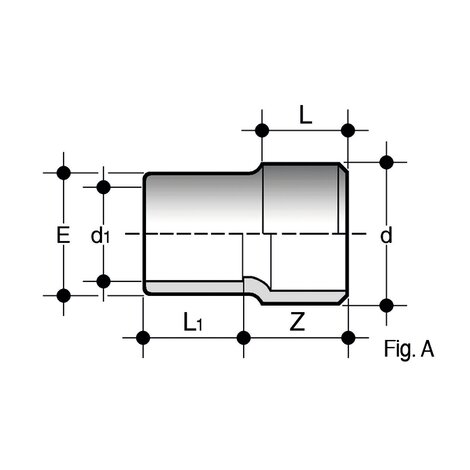

Reducer: solvent weld spigot (d), solvent weld socket (d1 reduced) (Fig.A).
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement and cleaner-primer.
| Reference | tooltipImage | product.detail.attribute.textBelowTableText | system | Category | family | d x d[5:1] | PN | E | L | L[5:1] | Z | g | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RIV016012 | - | I: IIP 122 F: AFNOR NF04 RIV: the quality marks refer to dimensions d and d1 | PVC-U system | Pressure Fittings | ISO-UNI Fittings | I | 16 x 12 | 16 | 19 | 14 | 12 | 18 | 7 |
| RIV020016 | - | I: IIP 122 F: AFNOR NF04 RIV: the quality marks refer to dimensions d and d1 | PVC-U system | Pressure Fittings | ISO-UNI Fittings | IF | 20 x 16 | 16 | 22 | 16 | 14 | 21 | 8 |
| RIV160110 | - | I: IIP 122 F: AFNOR NF04 RIV: the quality marks refer to dimensions d and d1 | PVC-U system | Pressure Fittings | ISO-UNI Fittings | F | 160 x 110 | 16 | 137 | 86 | 61 | 125 | 1270 |
| RIV200160 | - | I: IIP 122 F: AFNOR NF04 RIV: the quality marks refer to dimensions d and d1 | PVC-U system | Pressure Fittings | ISO-UNI Fittings | 200 x 160 | 10 | 182 | 106 | 86 | 156 | 2540 |
I: IIP 122 F: AFNOR NF04
RIV: the quality marks refer to dimensions d and d1
