RVUFM - Sediment strainer DN 15÷100

Sediment strainer with BSP threaded female union ends.

The RV Sediment strainer limits the passage of any solid particles present in the fluid by means of a strainer.

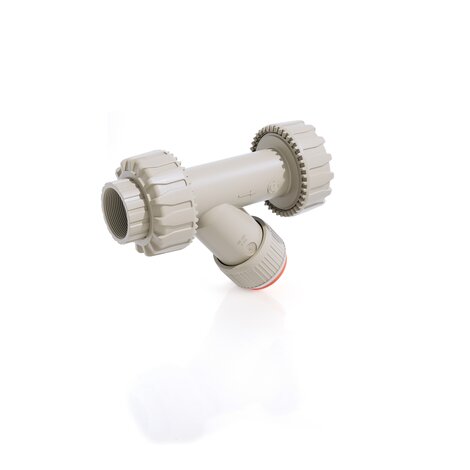

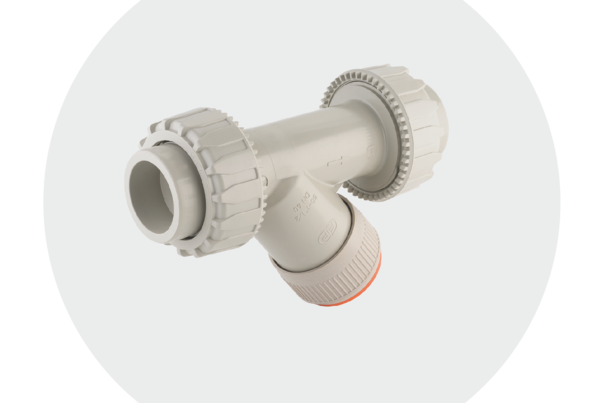

Raccoglitore di impurità RVUFM DN 15:100 in PP-H

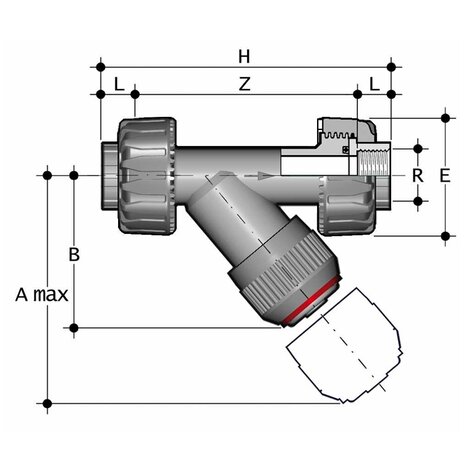

Disegno tecnico RVUFM DN 15:100 in PP-H
Raccoglitore di impurità RVUFM DN 15:100 in PP-H
Disegno tecnico RVUFM DN 15:100 in PP-H

EPDM

Reference Other description system Category family series division subfamily R DN PN A max B E H Z Fig. g
RVUFM012E Note 1: The sediment strainer RVUFM/FKM might be supplied in RVUIM/FKM version with 2 threaded sockets included Note 2: Standard filter screen is in PP-H, pitch 1,5 mm PP-H system Manual valves Sistema PP-H socket RV DN 10÷100 Sistema PP-H socket Válvulas manuales PP-H 1/2” 15 10 125 71 55 142 112 A 148
RVUFM034E Note 1: The sediment strainer RVUFM/FKM might be supplied in RVUIM/FKM version with 2 threaded sockets included Note 2: Standard filter screen is in PP-H, pitch 1,5 mm PP-H system Manual valves Sistema PP-H socket RV DN 10÷100 Sistema PP-H socket Válvulas manuales PP-H 3/4” 20 10 145 83 66 159 126 A 195
RVUFM100E Note 1: The sediment strainer RVUFM/FKM might be supplied in RVUIM/FKM version with 2 threaded sockets included Note 2: Standard filter screen is in PP-H, pitch 1,5 mm PP-H system Manual valves Sistema PP-H socket RV DN 10÷100 Sistema PP-H socket Válvulas manuales PP-H 1” 25 10 165 94 74 183 145 A 297
RVUFM114E Note 1: The sediment strainer RVUFM/FKM might be supplied in RVUIM/FKM version with 2 threaded sockets included Note 2: Standard filter screen is in PP-H, pitch 1,5 mm PP-H system Manual valves Sistema PP-H socket RV DN 10÷100 Sistema PP-H socket Válvulas manuales PP-H 1” 1/4 32 10 190 109 86 214 171 A 475
RVUFM112E Note 1: The sediment strainer RVUFM/FKM might be supplied in RVUIM/FKM version with 2 threaded sockets included Note 2: Standard filter screen is in PP-H, pitch 1,5 mm PP-H system Manual valves Sistema PP-H socket RV DN 10÷100 Sistema PP-H socket Válvulas manuales PP-H 1” 1/2 40 10 210 119 99 235 192 A 675
RVUFM200E Note 1: The sediment strainer RVUFM/FKM might be supplied in RVUIM/FKM version with 2 threaded sockets included Note 2: Standard filter screen is in PP-H, pitch 1,5 mm PP-H system Manual valves Sistema PP-H socket RV DN 10÷100 Sistema PP-H socket Válvulas manuales PP-H 2” 50 10 240 143 120 285 234 A 1100

FKM

Reference system Category family series division subfamily R DN PN A max B E H Z Fig. g
RVUFM012F PP-H system Manual valves Sistema PP-H socket RV DN 10÷100 Sistema PP-H socket Válvulas manuales PP-H 1/2” 15 10 125 71 55 142 112 A 148
RVUFM034F PP-H system Manual valves Sistema PP-H socket RV DN 10÷100 Sistema PP-H socket Válvulas manuales PP-H 3/4” 20 10 145 83 66 159 126 A 195
RVUFM100F PP-H system Manual valves Sistema PP-H socket RV DN 10÷100 Sistema PP-H socket Válvulas manuales PP-H 1” 25 10 165 94 74 183 145 A 297
RVUFM114F PP-H system Manual valves Sistema PP-H socket RV DN 10÷100 Sistema PP-H socket Válvulas manuales PP-H 1” 1/4 32 10 190 109 86 214 171 A 475
RVUFM112F PP-H system Manual valves Sistema PP-H socket RV DN 10÷100 Sistema PP-H socket Válvulas manuales PP-H 1” 1/2 40 10 210 119 99 235 192 A 675
RVUFM200F PP-H system Manual valves Sistema PP-H socket RV DN 10÷100 Sistema PP-H socket Válvulas manuales PP-H 2” 50 10 240 143 120 285 234 A 1100
  • Connection system for weld, threaded and flanged joints
  • Strainer assembled on an easily removed support that facilitates cleaning or replacement
  • Valve material compatibility (PP-H) with water conveyance, drinking water and other food substances according to current regulations
  • Can be maintained with the valve body installed
