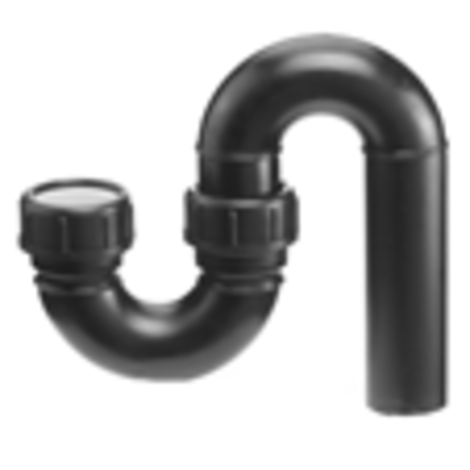

S-trap

Name : S-trap
Subcategory : Traps
Go back Data sheet
S-trap
S-trap
S-trap
S-trap

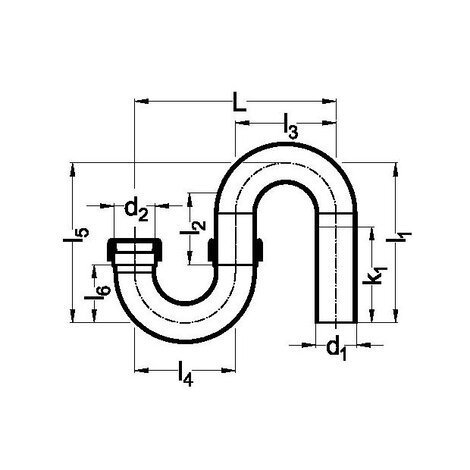

Reference Name tooltipImage noteEnum noteText d1 d2 Kg L l1 l2 l3 l4 l5 l6
40401 S-trap - 1 SBR seal 1 - - - - - - - - - -
40501 S-trap - 1 SBR seal 1 - - - - - - - - - -
50501 S-trap - 1 SBR seal 1 - - - - - - - - - -
50601 S-trap - 1 SBR seal 1 - - - - - - - - - -
05 56 01 S-trap - 1 SBR seal 1 56 50 0,380 200 238 135 100 100 213 73
60601 S-trap - 1 SBR seal 1 - - - - - - - - - -
70701 S-trap - 1 SBR seal 1 - - - - - - - - - -
56 56 01 S-trap - 1 SBR seal 1 56 56 0,453 210 230 130 110 110 205 70
1 SBR seal
