TBM PN6 SDR 17,6 - 8,3 - Fittings equal ends

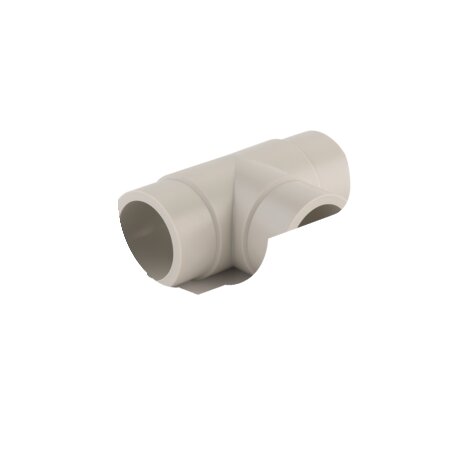

90° Tee, short spigot for butt welding PN6 SDR 17,6 - S 8,3.
Series of fittings designed for conveying fluids under pressure with a weld connection system (butt welding).

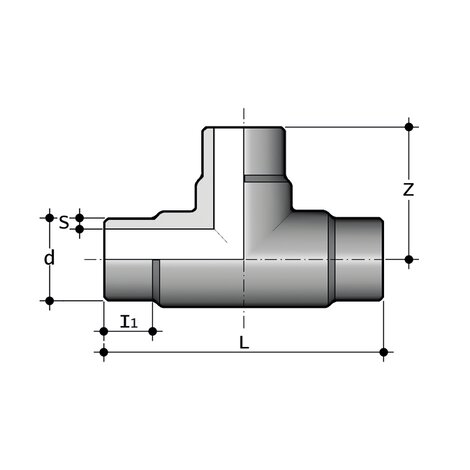

| Reference | tooltipImage | product.detail.attribute.textBelowTableText | system | Category | family | d | I[5:1] | L | s | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TBM17050 | - | *resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | 50 | 25 | 124 | 3 | 62 | 80 |
| TBM17063 | - | *resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | 63 | 29 | 156 | 3,6 | 78 | 175 |
| TBM17075 | - | *resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | 75 | 33 | 180 | 4 | 90 | 295 |
| TBM17090 | - | *resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *90 | 23 | 200 | 5,1 | 100 | 480 |
| TBM17110 | - | *resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *110 | 43 | 240 | 6,3 | 120 | 790 |
| TBM17125 | - | *resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *125 | 26 | 250 | 7,1 | 125 | 1150 |
| TBM17140 | - | *resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *140 | 32 | 280 | 8 | 140 | 1455 |
| TBM17160 | - | *resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *160 | 40 | 320 | 9,1 | 160 | 2170 |
| TBM17180 | - | *resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *180 | 73 | 390 | 10,2 | 195 | 3315 |
| TBM17200 | - | *resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *200 | 64 | 430 | 11,4 | 215 | 4600 |
| TBM17225 | - | *resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *225 | 72 | 490 | 12,8 | 245 | 6530 |
| TBM17250 | - | *resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *250 | 86 | 550 | 14,2 | 275 | 8145 |
| TBM17280 | - | *resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *280 | 105 | 620 | 15,9 | 310 | 13000 |
| TBM17315 | - | *resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *315 | 111 | 700 | 17,9 | 350 | 18375 |
| TBM17355 | - | *resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *355 | 103 | 690 | 20,1 | 345 | 21900 |
| TBM17400 | - | *resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *400 | 105 | 734 | 22,7 | 367 | 26300 |
| TBM17450 | - | *resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *450 | 138 | 838 | 25,5 | 419 | 42715 |
| TBM17500 | - | *resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *500 | 165 | 954 | 28,3 | 477 | 59500 |
*resale products
