TBM PN6 SDR 17,6 - S8,3 - Fittings equal ends

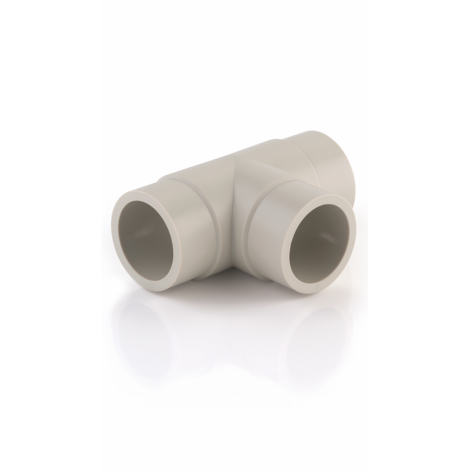

90° Tee, short spigot for butt welding SDR 17,6 - S8,3

Series of fittings designed for conveying fluids under pressure with a weld connection system (butt welding).
TBM - Fittings equal ends
TBM - Fittings equal ends
TBM - Fittings equal ends
TBM - Fittings equal ends
Reference Other description system Category family d I1 L s Z g
TBM17050 *resale products PP-H system Pressure Fittings ISO-UNI Fittings Butt Welding 50 21 124 2,9 62 80
TBM17063 *resale products PP-H system Pressure Fittings ISO-UNI Fittings Butt Welding 63 24 156 3,6 78 175
TBM17075 *resale products PP-H system Pressure Fittings ISO-UNI Fittings Butt Welding 75 28 180 4,3 90 280
TBM17090 *resale products PP-H system Pressure Fittings ISO-UNI Fittings Butt Welding 90 42 200 5,1 100 540
TBM17110 *resale products PP-H system Pressure Fittings ISO-UNI Fittings Butt Welding *110 57 260 6,3 130 925
TBM17125 *resale products PP-H system Pressure Fittings ISO-UNI Fittings Butt Welding *125 50 320 7,1 125 1133
TBM17140 *resale products PP-H system Pressure Fittings ISO-UNI Fittings Butt Welding *140 63 320 8,0 160 1765
TBM17160 *resale products PP-H system Pressure Fittings ISO-UNI Fittings Butt Welding *160 57 320 9,1 160 2335
TBM17180 *resale products PP-H system Pressure Fittings ISO-UNI Fittings Butt Welding *180 97 434 10,2 217 4000
TBM17200 *resale products PP-H system Pressure Fittings ISO-UNI Fittings Butt Welding *200 94 440 11,4 220 5060
TBM17225 *resale products PP-H system Pressure Fittings ISO-UNI Fittings Butt Welding *225 72 454 12,8 227 6870
TBM17280 *resale products PP-H system Pressure Fittings ISO-UNI Fittings Butt Welding *280 88 532 15,9 266 10680
TBM17315 *resale products PP-H system Pressure Fittings ISO-UNI Fittings Butt Welding *315 86 566 17,9 283 14105
TBM17355 *resale products PP-H system Pressure Fittings ISO-UNI Fittings Butt Welding *355 103 690 20,1 345 21900
TBM17400 *resale products PP-H system Pressure Fittings ISO-UNI Fittings Butt Welding *400 105 734 22,7 367 26300
TBM17450 *resale products PP-H system Pressure Fittings ISO-UNI Fittings Butt Welding *450 138 838 25,5 419 42715
TBM17500 *resale products PP-H system Pressure Fittings ISO-UNI Fittings Butt Welding *500 165 954 28,3 477 59500
