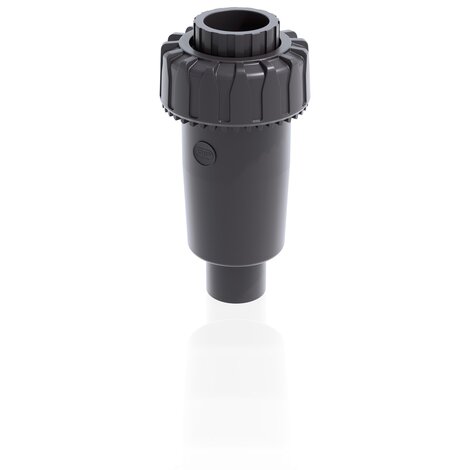

VAIV - Air release valve DN 15:50
Air release valve with male ends for solvent welding, metric series.
The purpose of the VA air release is to eliminate any air entering the pipe with the liquid.
Need help to choose the ideal FIP valve for your needs? Try our new Valve Configurator that will guide you through the technical and functional characteristics of our wide range of products!

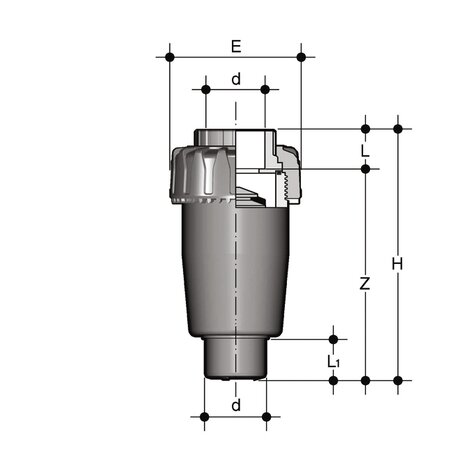

| Reference | system | Category | family | series | division | subfamily | d | DN | PN | E | H | L | L1 | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VAIV020E | PVC-U system | Manual valves | Sistema PVC-U | VA DN 15÷50 | Sistema PVC-U | Válvulas manuales PVC-U presión | 20 | 15 | 16 | 55 | 103 | 16 | 18 | 87 | 105 |
| VAIV025E | PVC-U system | Manual valves | Sistema PVC-U | VA DN 15÷50 | Sistema PVC-U | Válvulas manuales PVC-U presión | 25 | 20 | 16 | 66 | 125 | 19 | 20 | 106 | 185 |
| VAIV032E | PVC-U system | Manual valves | Sistema PVC-U | VA DN 15÷50 | Sistema PVC-U | Válvulas manuales PVC-U presión | 32 | 25 | 16 | 75 | 150 | 22 | 24 | 128 | 280 |
| VAIV040E | PVC-U system | Manual valves | Sistema PVC-U | VA DN 15÷50 | Sistema PVC-U | Válvulas manuales PVC-U presión | 40 | 32 | 16 | 87 | 171 | 26 | 28 | 145 | 415 |
| VAIV050E | PVC-U system | Manual valves | Sistema PVC-U | VA DN 15÷50 | Sistema PVC-U | Válvulas manuales PVC-U presión | 50 | 40 | 16 | 100 | 187 | 31 | 34 | 156 | 570 |
| VAIV063E | PVC-U system | Manual valves | Sistema PVC-U | VA DN 15÷50 | Sistema PVC-U | Válvulas manuales PVC-U presión | 63 | 50 | 16 | 122 | 223 | 38 | 41 | 185 | 950 |
- Connection system for solvent weld and threaded joints
- No metal parts in contact with the fluid
- Can be used as a vacuum breaker valve when installed with the nut at the bottom
- Valve material compatibility (PVC-U) with water, drinking water and other food substance conveyance according to current regulations
- Can be maintained with the valve body installed
