VKDBEM - DUAL BLOCK® 2-way ball valve DN 65:100

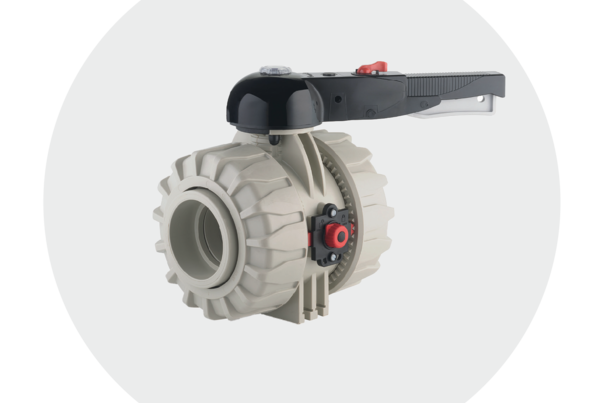

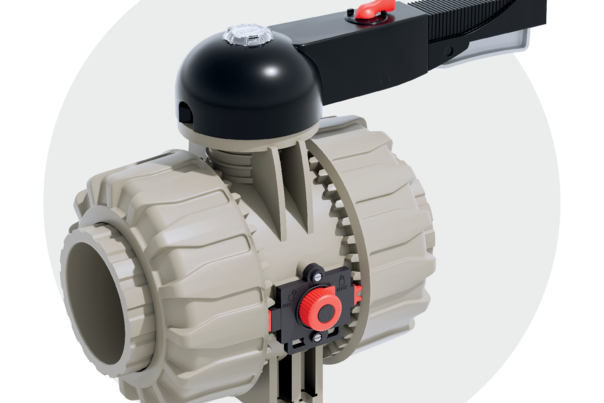

DUAL BLOCK® 2-way ball valve with PE100 SDR 11 male end connectors for butt welding or electrofusion (CVDE).
FIP has developed a VKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. VKD is a True Union ball valve that meets the most stringent needs required by industrial applications. This valve is also equipped with a customisable Labelling System.
Main features:
- HIPVC ergonomic multifunctional handle for quick operation, lock and graduated adjustment in 10 positions. Possibility of inhibiting rotation with a lock
- Customisable Labelling System: LCE module made of a transparent protection plug and customisable tag holder using the LSE set (available as accessory). The customisation lets you identify the valve on the system according to specific needs
- DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
- Double stem with double O-Rings for ball centring and operating torque reduction
- Machined high surface finish ball that guarantees a smooth operation and increased reliability
| Reference | tooltipImage | system | Category | family | series | d | DN | PN | B | B[5:1] | C | C[5:1] | E | H | H[5:1] | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VKDBEM075E | - | PP-H system | Manual valves | Ball valves | VKD DN 65÷100 | 75 | 65 | 10 | 164 | 87 | 225 | 175 | 162 | 356 | 133 | 71 | 214 | 3100 |
| VKDBEM090E | - | PP-H system | Manual valves | Ball valves | VKD DN 65÷100 | 90 | 80 | 10 | 177 | 105 | 327 | 272 | 202 | 390 | 149 | 88 | 214 | 5180 |
| VKDBEM110E | - | PP-H system | Manual valves | Ball valves | VKD DN 65÷100 | 110 | 100 | 10 | 195 | 129 | 385 | 330 | 236 | 431 | 167 | 92 | 247 | 7800 |
| Reference | tooltipImage | system | Category | family | series | d | DN | PN | B | B[5:1] | C | C[5:1] | E | H | H[5:1] | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VKDBEM075F | - | PP-H system | Manual valves | Ball valves | VKD DN 65÷100 | 75 | 65 | 10 | 164 | 87 | 225 | 175 | 162 | 356 | 133 | 71 | 214 | 3100 |
| VKDBEM090F | - | PP-H system | Manual valves | Ball valves | VKD DN 65÷100 | 90 | 80 | 10 | 177 | 105 | 327 | 272 | 202 | 390 | 149 | 88 | 214 | 5180 |
| VKDBEM110F | - | PP-H system | Manual valves | Ball valves | VKD DN 65÷100 | 110 | 100 | 10 | 195 | 129 | 385 | 330 | 236 | 431 | 167 | 92 | 247 | 7800 |
- Connection system for solvent weld, threaded and flanged joints
- Patented SEAT STOP® ball carrier system that lets you micro-adjust seals and minimise axial force effects
- Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
- PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
- Option of dismounting downstream pipes with the valve in the closed position
- Full bore ball with high surface finish
- Integrated bracket for valve anchoring
- Possibility of installing a manual reducer or pneumatic and/or electric actuators by applying an ISO standard bore PP-GR flange
- STAINLESS steel co-moulded stem, with square section as per ISO 5211
- Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
