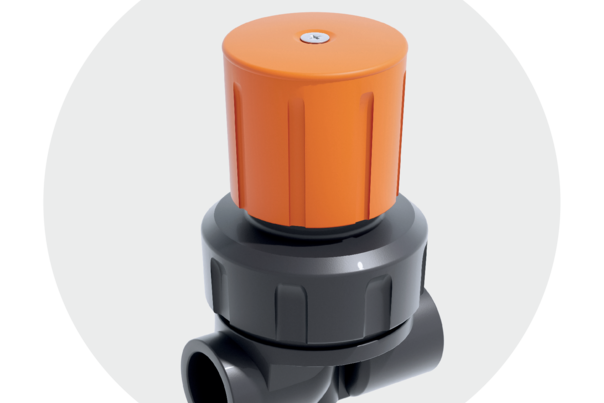

VMIV - Mini Diaphragm valve DN 8
Mini-diaphragm valve with female ends for solvent welding, metric series.
The VM mini-valve is used to shut-off and regulate fluid flow and is characterised by its reduced size.
Need help to choose the ideal FIP valve for your needs? Try our new Valve Configurator that will guide you through the technical and functional characteristics of our wide range of products!
| Reference | system | Category | family | series | d | DN | PN | E | H | H1 |
H[5:2] | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VMIV012E | PVC-U system | Manual valves | Diaphragm valves | VM DN 8 | 12 | 8 | 10 | 43 | 48 | 72 | 81 | 12 | 24 | 70 |
- Connection system for solvent weld and threaded joints
- Extremely compact dimensions
- Can be installed in any position
- Valve material compatibility (PVC-U) and elastomer seal elements (EPDM), with water, drinking water and other food substances as per current regulations
- Specifically designed for laboratory applications or for sampling purposes
