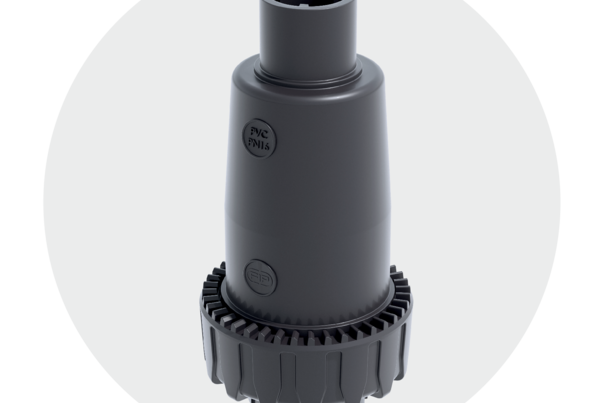

VZFV - Foot valve DN 10:50
Foot valve with BSP threaded female ends.
The VZ foot valve allows the passage of fluid in one direction only.
| Reference | tooltipImage | system | Category | family | series | R | DN | PN | E | H | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VZFV012E | - | PVC-U system | Manual valves | Auxiliary valves | VZ DN 10÷50 | 1/2” | 15 | 16 | 55 | 124 | 15 | 94 | 135 |
| VZFV034E | - | PVC-U system | Manual valves | Auxiliary valves | VZ DN 10÷50 | 3/4” | 20 | 16 | 66 | 149 | 16,3 | 116,4 | 230 |
| VZFV100E | - | PVC-U system | Manual valves | Auxiliary valves | VZ DN 10÷50 | 1" | 25 | 16 | 75 | 175 | 19,1 | 136,8 | 390 |
| VZFV112E | - | PVC-U system | Manual valves | Auxiliary valves | VZ DN 10÷50 | 1” 1/2 | 40 | 16 | 100 | 209 | 21,4 | 166,2 | 860 |
| VZFV114E | - | PVC-U system | Manual valves | Auxiliary valves | VZ DN 10÷50 | 1” 1/4 | 32 | 16 | 87 | 200 | 21,4 | 157,2 | 620 |
| VZFV200E | - | PVC-U system | Manual valves | Auxiliary valves | VZ DN 10÷50 | 2" | 50 | 16 | 122 | 248 | 25,7 | 196,6 | 1520 |
- Connection system for solvent weld and threaded joints
- No metal parts in contact with the fluid
- Piston with incorporated counterweight able to work with high intensity fluid
- Limited pressure loss. Only minimum back pressure is required for the hermetic seal
- Valve material compatibility (PVC-U) with water, drinking water and other food substance conveyance according to current regulations
- Can be maintained with the valve body installed
