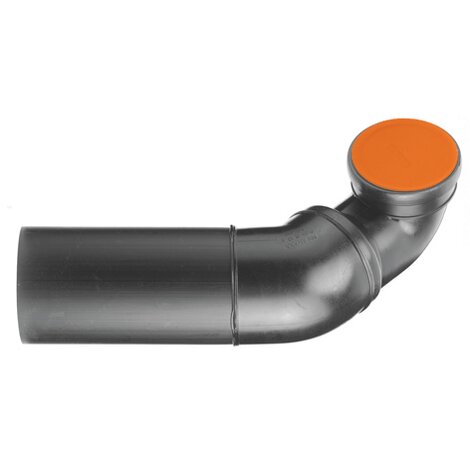

Wall-lavatory bend 90° (horizontal) right
With protection plug
| Name : | Wall-lavatory bend 90° (horizontal) right With protection plug |
| Subcategory : | Wall-lavatory |
| Part no. | Name | d1 | Kg | d | l1 | l2 | l3 | noteEnum | noteText | note2Text | d1/ | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 09 33 | Wall-lavatory bend 90° (horizontal) right | 90 | 0,422 | 90 | 300 | 100 | 75 | 1 | SBR seal | NBR O-ring | 1 | - |
| 501033 | Wall-lavatory bend 90° (horizontal) rightWith protection plug | - | 0,69 | 90 | 350 | 100 | 75 | 1 | SBR seal | NBR O-ring | 1 | 110 |
| 501133 | Wall-lavatory bend 90° (horizontal) rightWith protection plug | - | 0,76 | 110 | 350 | 100 | 75 | 2 | SBR seal | NBR O-ring | 2 | 110 |
1 SBR seal
2 NBR O-ring
