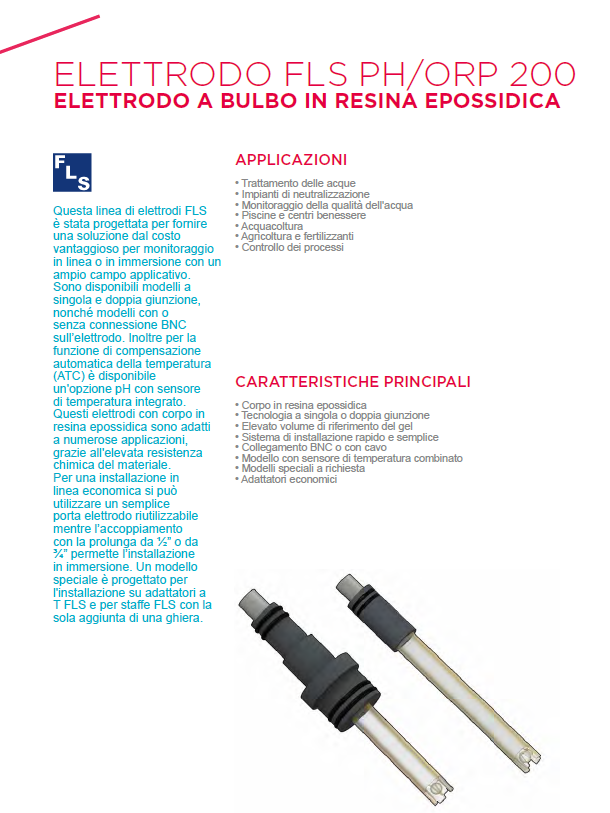

Data specific for pH-ORP.200
Epoxy body bulb electrode
This line of FLS electrodes has been designed to provide a cost‑effective solution for in‑line or immersion monitoring with a wide field of application. Single and double coupling models are available, as well as models with or without BNC connection on the electrode. A pH option with built‑in temperature sensor is also available for the Automatic Temperature Compensation (ATC) function. These electrodes with an epoxy resin body are suitable for numerous applications, thanks to the high chemical resistance of the material. For a cost‑effective in‑line installation, a simple reusable electrode holder can be used while the coupling with the ½” or ¾” extension allows immersion installation. A special model is designed for installation on FLS T adapters and for FLS clamp saddles with only the addition of a union nut.
| Reference | system | Category | family | series | division | subfamily | Body | Materiale/tipo di giunzione | Reference solution | Detection surface | O-ring | Connection | Max working pressure at operating temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ORP200C | Automation system | FLS Measurement and control Instrumentation | Medición | Bulb and Flat pH/ORP Electrodes with Epoxy, C-PVC, Ryton or Glass body | Medición | Electrodos de pH y ORP | resina epossidica | nylon/S.J. | KCl 3,5 M | platino | - | 5 m (16,5 piedi) | 7 bar a 25 °C /$1 bar a 65 °C$(100 psi a 77 °F/ 14,5 psi a 149 °F) |
| ORP222CD | Automation system | FLS Measurement and control Instrumentation | Medición | Bulb and Flat pH/ORP Electrodes with Epoxy, C-PVC, Ryton or Glass body | Medición | Electrodos de pH y ORP | resina epossidica | nylon/D.J. | KCl 3,5 M / KNO3 sat. | platino | silicone | Twist-Lock (BNC) | 7 bar a 25 °C /$1 bar a 65 °C$(100 psi a 77 °F/ 14,5 psi a 149 °F) |
| ORP223CD | Automation system | FLS Measurement and control Instrumentation | Medición | Bulb and Flat pH/ORP Electrodes with Epoxy, C-PVC, Ryton or Glass body | Medición | Electrodos de pH y ORP | resina epossidica | nylon/D.J. | KCl 3,5 M / KNO3 sat. | platino | silicone | Twist-Lock (BNC) | 7 bar a 25 °C /$1 bar a 65 °C$(100 psi a 77 °F/ 14,5 psi a 149 °F) |
| PH200C | Automation system | FLS Measurement and control Instrumentation | Medición | Bulb and Flat pH/ORP Electrodes with Epoxy, C-PVC, Ryton or Glass body | Medición | Electrodos de pH y ORP | resina epossidica | nylon/S.J. | KCl 3,5 M | membrana in vetro di pH | - | 5 m (16,5 piedi) | 7 bar a 25 °C /$1 bar a 65 °C$(100 psi a 77 °F/ 14,5 psi a 149 °F) |
| PH222CD | Automation system | FLS Measurement and control Instrumentation | Medición | Bulb and Flat pH/ORP Electrodes with Epoxy, C-PVC, Ryton or Glass body | Medición | Electrodos de pH y ORP | resina epossidica | nylon/D.J. | KCl 3,5 M / KNO3 sat. | membrana in vetro di pH | silicone | Twist-Lock (BNC) | 7 bar a 25 °C /$1 bar a 65 °C$(100 psi a 77 °F/ 14,5 psi a 149 °F) |
| PH222CDTC | Automation system | FLS Measurement and control Instrumentation | Medición | Bulb and Flat pH/ORP Electrodes with Epoxy, C-PVC, Ryton or Glass body | Medición | Electrodos de pH y ORP | resina epossidica | nylon/D.J. | KCl 3,5 M / KNO3 sat. | membrana in vetro di pH | - | 5 m (16,5 piedi) | 7 bar a 25 °C /$1 bar a 65 °C$(100 psi a 77 °F/ 14,5 psi a 149 °F) |
| PH223CD | Automation system | FLS Measurement and control Instrumentation | Medición | Bulb and Flat pH/ORP Electrodes with Epoxy, C-PVC, Ryton or Glass body | Medición | Electrodos de pH y ORP | resina epossidica | nylon/D.J. | KCl 3,5 M / KNO3 sat. | membrana in vetro di pH | silicone | Twist-Lock (BNC) | 7 bar a 25 °C /$1 bar a 65 °C$(100 psi a 77 °F/ 14,5 psi a 149 °F) |
APPLICATIONS:
- Water treatment
- Neutralisation systems
- Water quality monitoring
- Swimming pools and spas
- Aquaculture
- Agriculture and fertilizers
- Process control
MAIN CHARACTERISTICS:
- Epoxy resin body
- Single or double coupling technology
- High reference gel volume
- Quick and easy installation system
- BNC or cable connection
- Model with combined temperature sensor
- Special models on request
- Cost‑effective adapters
